Connecting to MongoDB

PDF

Focus Mode

Font Size

Last updated: 2025-09-19 14:51:18

This document describes how to connect to the proprietary data source MongoDB. Connecting to MongoDB mainly involves 2 steps. The first step is to install the MongoDB Connector for Business Intelligence (BI), and the second step is to add a MongoDB data source in the BI console.
Installing the MongoDB Connector
MongoDB needs to install the official MongoDB Connector for BI before connecting to BI for analysis. The following takes the Linux operating system as an example to explain how to install the MongoDB Connector for BI.
Downloading the MongoDB Connector for BI
Go to the official MongoDB BI Connector download link and select the platform that matches your local operating system.
﻿
Unzip the downloaded file.
﻿
Starting the Mongosqld Service
Note: You need to add the IP address of the ECS used to start the Mongosqld service to the MongoDB database allowlist.
To start the Mongosqld service, execute the following operations in order:
1. Creating a Configuration File
net:
  bindIp: "xxx" # The externally exposed connection IP address
  port: 3307 # The external port
  ssl:
    mode: "disabled"
mongodb:
  net:
    uri: "mongodb://xxxx:27017" # mongodb-uri
    ssl:
      enabled: false
    auth:
      username: xxxx # The username
      password: xxxx # The password
      source: admin # The authentication database
      mechanism: SCRAM-SHA-1
security:
  enabled: true
  defaultMechanism: "SCRAM-SHA-1"
  defaultSource: "admin" # The default authentication database
systemLog:
  path: '/var/log/mongodb/mongosqld.log' # The log file path
  quiet: false
  ## 0|1|2 - Verbosity of the log output, this is overridden if `quiet` is true.
  verbosity: 1
  # logAppend: false
  logRotate: "rename" # "rename"|"reopen"
schema:
  refreshIntervalSecs: 86400 # The interval time for synchronizing MongoDB databases and collections information into memory. Unit: seconds
  stored:
    mode: "auto"
    source: "mongosqld_data" # The storage location of database structure information
    name: "test" # the named schema to read/write to in stored-schema modes
processManagement:
  service:
    name: "mongosql"
    displayName: "MongoSQL Service"
    description: "MongoSQL accesses MongoDB data with SQL"
2. Loading the Configuration File
sudo mongosqld install --config <pathToConfigFile>/mongosqld.conf
3. Starting the Service
sudo systemctl start mongosql.service
4. Enabling This Service for Automatic Startup of This Service During Startup
systemctl enable mongosql.service
Creating a MongoDB Data Source
After the MongoDB Connector is installed, you can create a MongoDB data source in the BI console. The specific process is as follows:

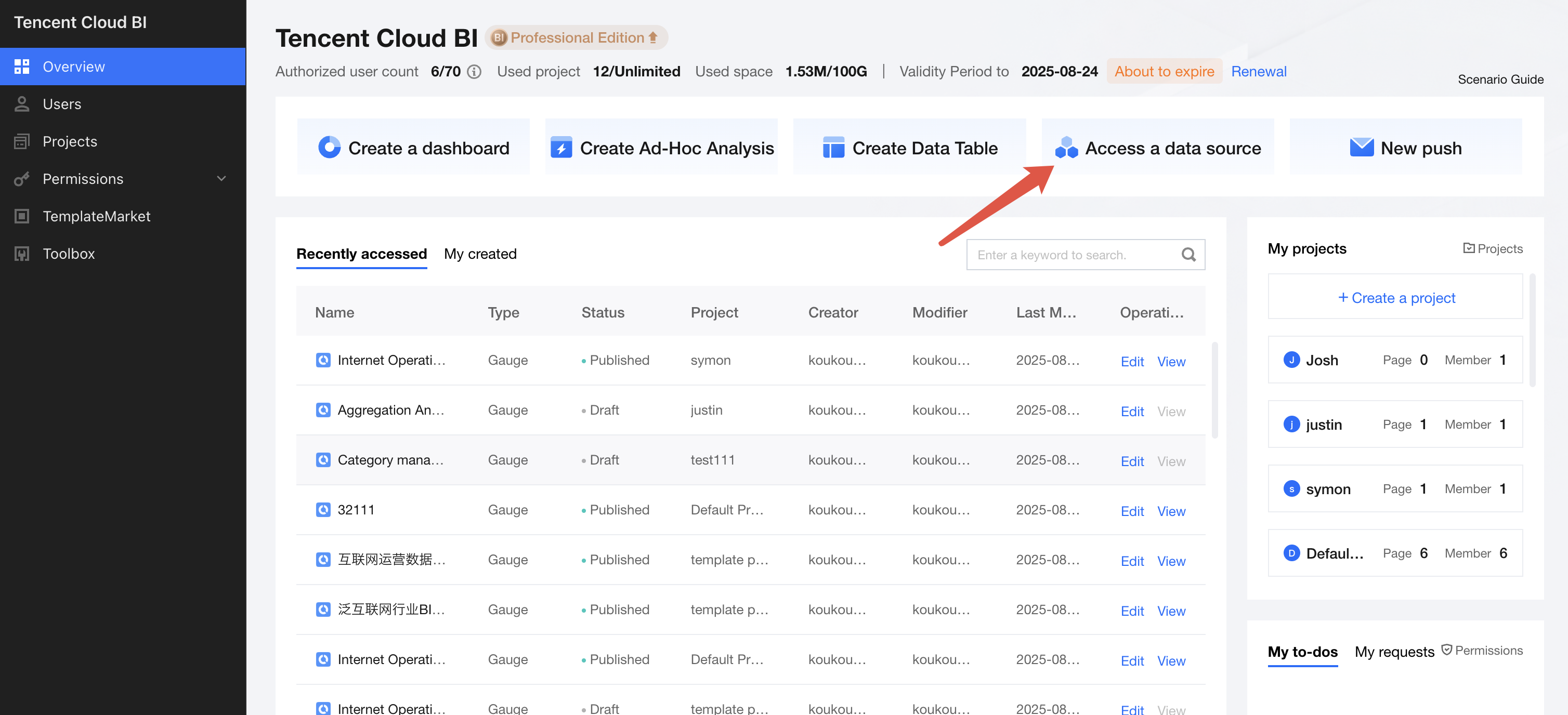

Log in to the BI Console and select "Access Data Source".
﻿

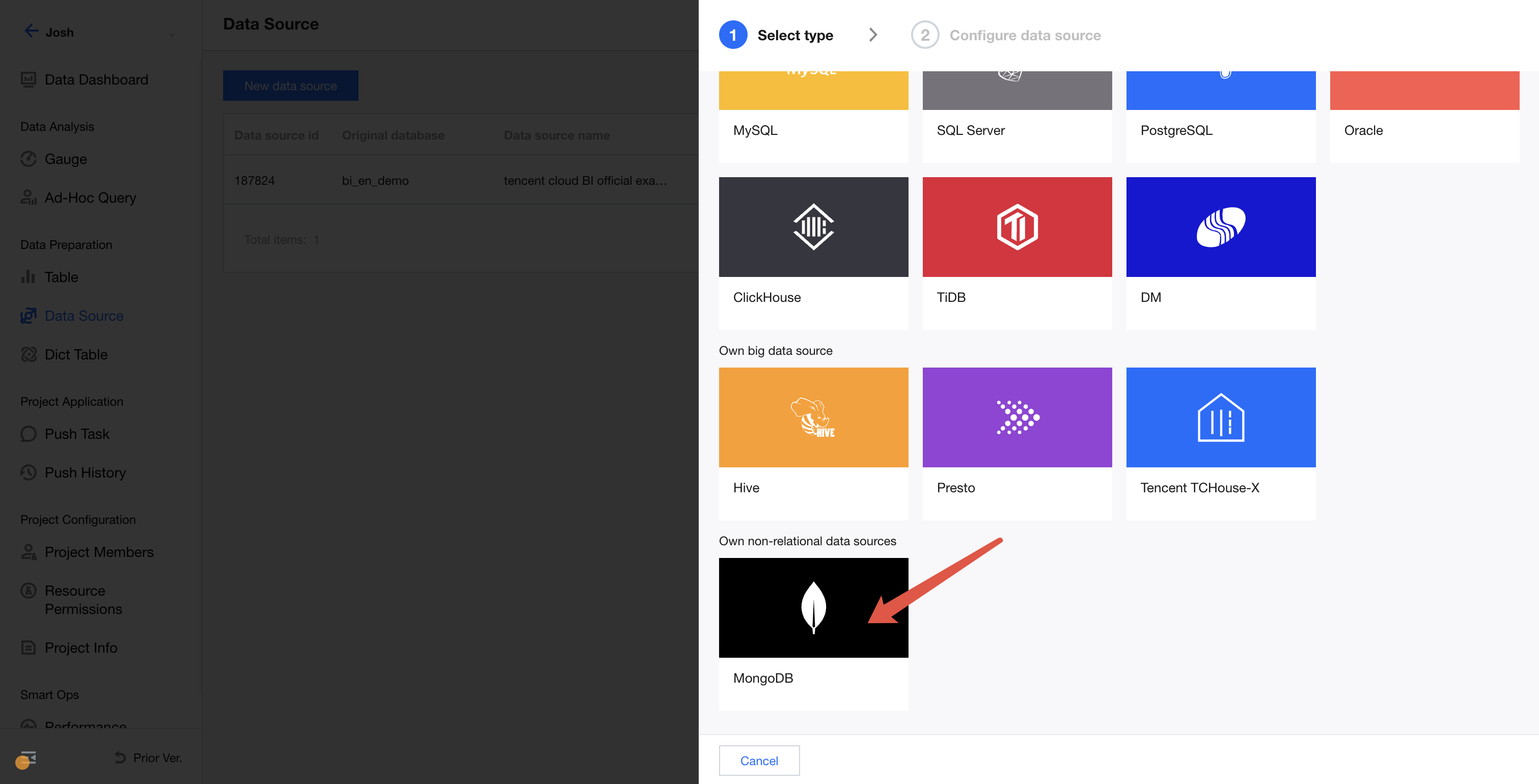

After selecting the corresponding project, select "MongoDB" under proprietary data sources.
﻿

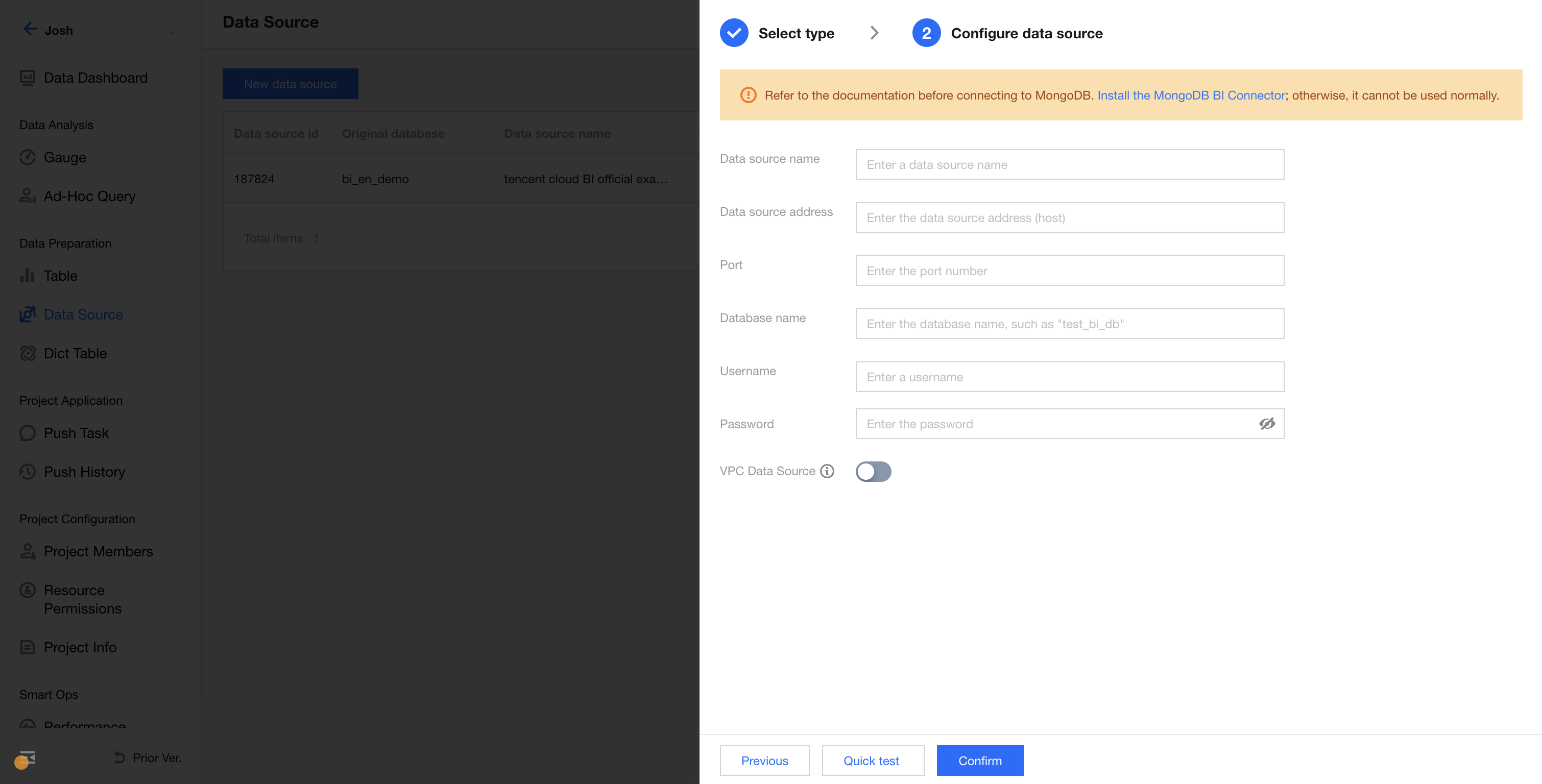

After selecting, enter the parameters shown below. The parameter descriptions are as follows:
﻿
Data source display name: The name displayed in BI.
Data source IP address: The IP address of the database, such as a public network IP address in the format of cdb-2dhmvx6s.bj.tencentcdb.com. Private network IP addresses such as 49.232.129.87 are not supported.
Port: The port number of the database, such as 3306.
Database name: The name of the database.
Database name: The name of the database.
Username & Password: The username and password for the database.
﻿

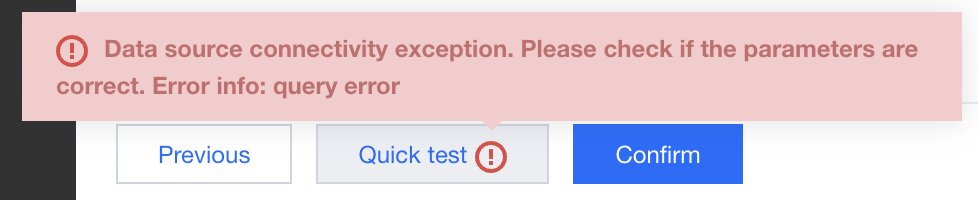

After entering the information, you can click one-click testing at the bottom to perform a connectivity test. If the prompt "Data source connectivity exception" appears as shown below, the connection fails. At this point, check whether the username, password, or other connection information is entered correctly.
﻿
﻿
﻿

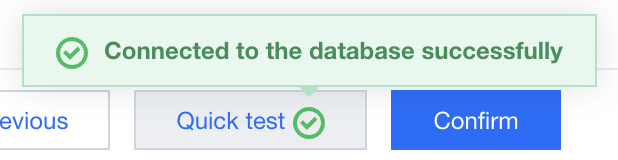

If the connection is successful, a prompt will appear as shown below. You can then OK for creation.
﻿
﻿
﻿
After the creation, a new row of records will be added to the list, indicating that the creation is complete. If any information needs to be modified, click Edit to make changes. Once the creation is complete, you can proceed with creating a data table. For more details, see Data Table Creation and Data Processing.
﻿
